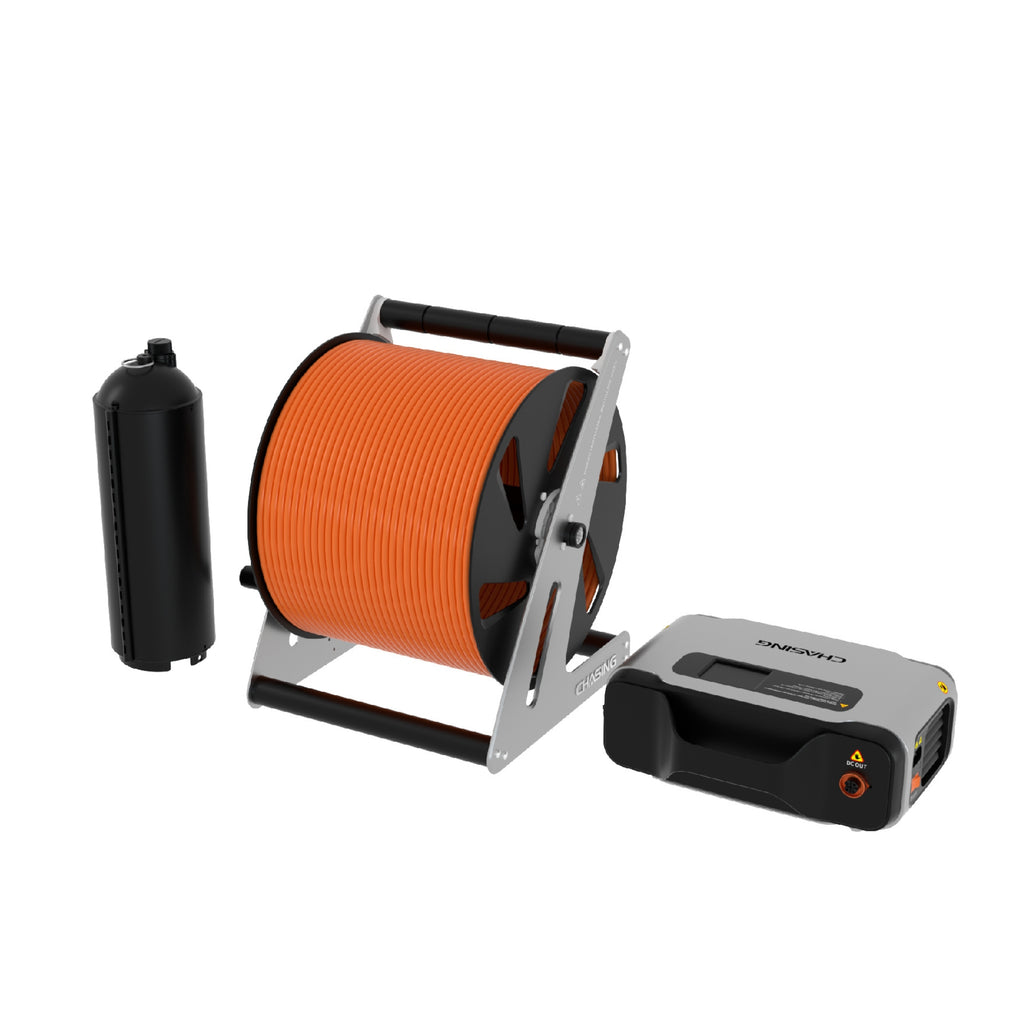

Chasing C-SPSS Power System 100M/200M Tether | M2 Pro Max ROV
Chasing C-SPSS Shore-Based Power Supply System with Tether | Chasing M2 Pro Max ROV
The Chasing Shore-Based Power Supply System (C-SPSS) is designed for the Chasing M2 Pro Max ROV to provide continuous shore-based power for extended professional underwater operations. Available with either a 100m or 200m tether, the system helps eliminate runtime limitations caused by relying solely on the ROV battery.
Select Your Tether Length: Choose between the 100m or 200m tether option based on your operating requirements.
Continuous Power for 24/7 Operation
With a maximum output power of 1,500W, the C-SPSS is designed to support continuous ROV operation and can provide sufficient power for up to five accessories at the same time. This makes it ideal for long-duration inspections, surveys, search operations, and other demanding professional applications.

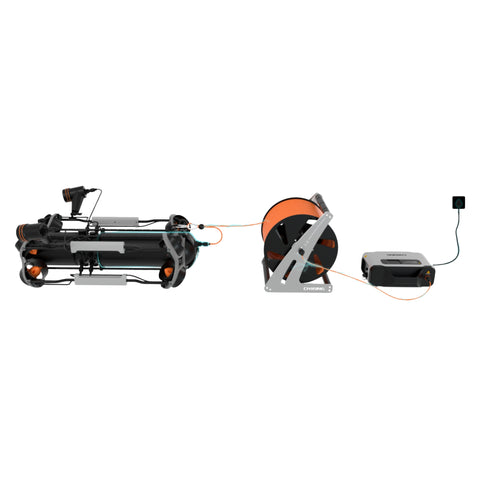

100m or 200m Long-Distance Power Supply
The C-SPSS is available with either a 100-meter or 200-meter high-power tether, allowing operators to select the length that best fits their mission. The high-power tether can withstand up to 250 kgf of tensile force for reliable operation in demanding underwater environments.
Easy Plug-and-Play Installation
The system uses a battery-compartment-style design that allows for straightforward installation on the Chasing M2 Pro Max. Its plug-and-play configuration helps reduce setup time and allows operators to get missions started quickly.
Multiple Built-In Safety Protections
The C-SPSS incorporates multiple protection systems, including leakage protection, overcurrent protection, undervoltage protection, overvoltage protection, short-circuit protection, and high-temperature protection for safer and more reliable operation.
Portable Protective Trolley Case
The system is supplied with a durable Chasing trolley case designed to protect the equipment during transport and storage while remaining convenient to move between job sites.
Designed for Professional Underwater Operations
The C-SPSS is well suited for applications requiring extended ROV runtime, including infrastructure inspection, search and recovery, marine research, aquaculture, surveying, and other professional underwater operations.
- 100m Tether
- 200m Tether

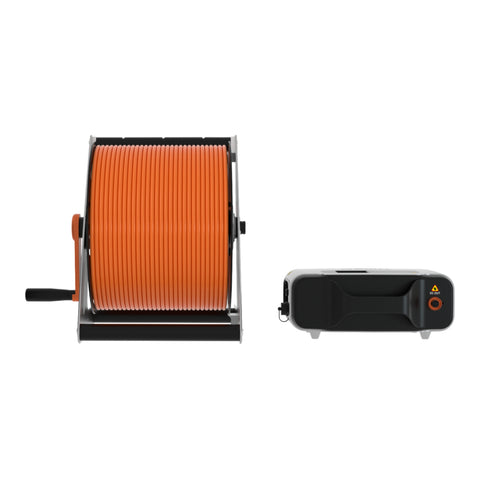

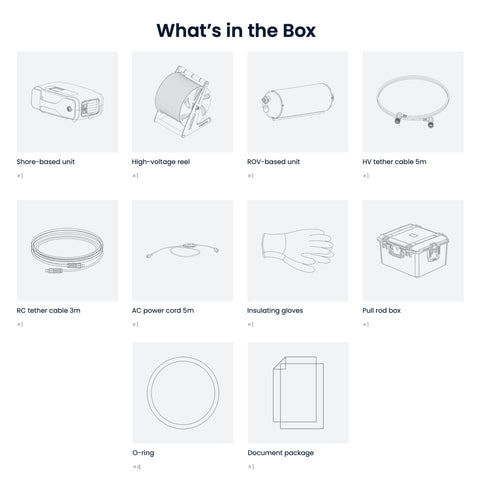

- (1) Shore-Based Unit

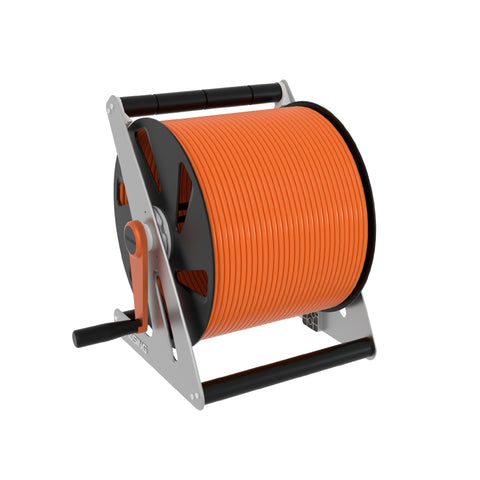

- (1) High-Voltage Reel

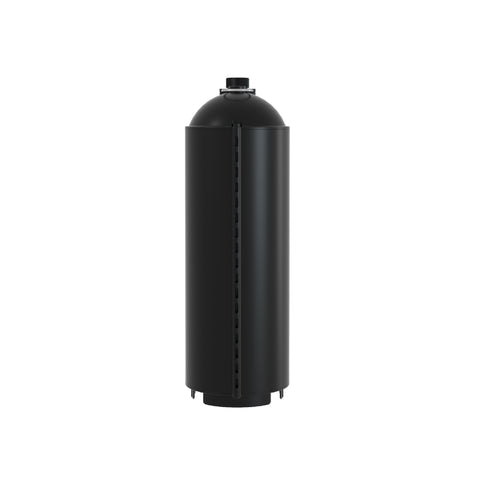

- (1) ROV-Based Unit
- (1) Selected 100m or 200m High-Power Tether
- (1) HV Tether Cable, 5m
- (1) RC Tether Cable, 3m
- (1) AC Power Cord, 5m
- (1) Insulating Gloves
- (1) Protective Trolley Case
- (4) O-Rings
- (1) Document Package
- Compatible with Chasing M2 Pro Max ROV
- Available Tether Lengths: 100m or 200m
- Maximum Output Power: 1,500W
- Supports Up to 5 Accessories Simultaneously
- Designed for Continuous 24/7 Operation
- High-Power Tether Tensile Strength: Up to 250 kgf
- Installation: Battery-Compartment-Style Plug-and-Play Design
- Protection Functions: Leakage, Overcurrent, Undervoltage, Overvoltage, Short Circuit, and High Temperature

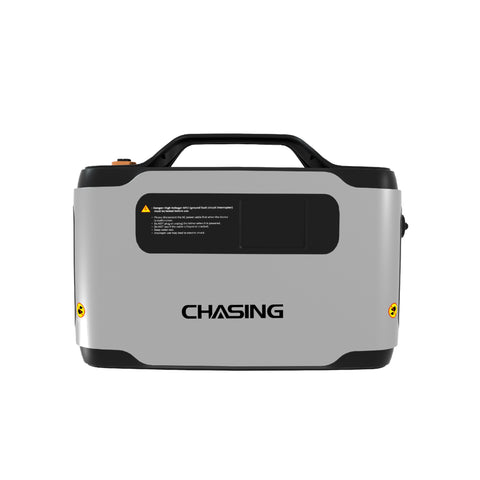

- Shore-Based Unit Size: 230 x 315 x 118 mm
- Shore-Based Unit Weight: 3.9 kg
- Operating Temperature: -10°C to 50°C
- Input: 100-125VAC, 50/60Hz, 15A Max; 200-240VAC, 50/60Hz, 10A Max
- RC Port Output: 24VDC, 50W Max
- Efficiency: ≥92%
 |
