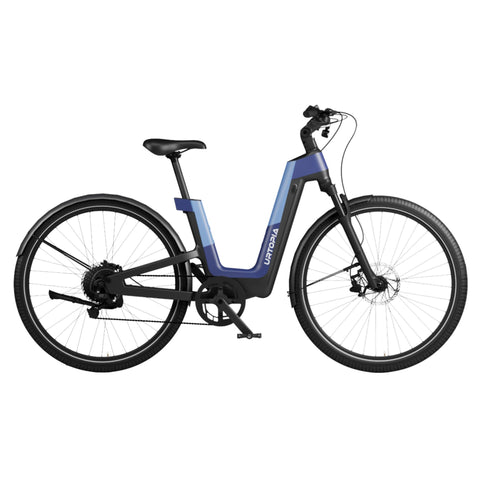

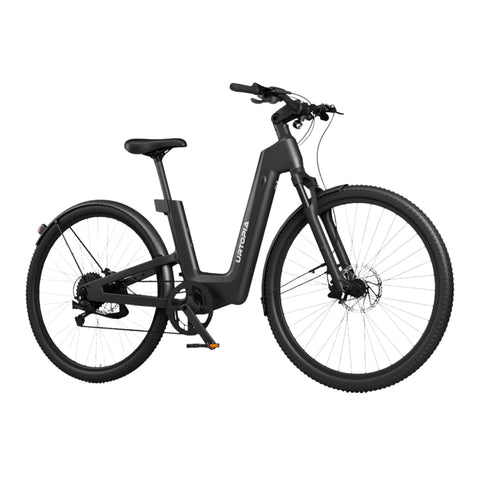

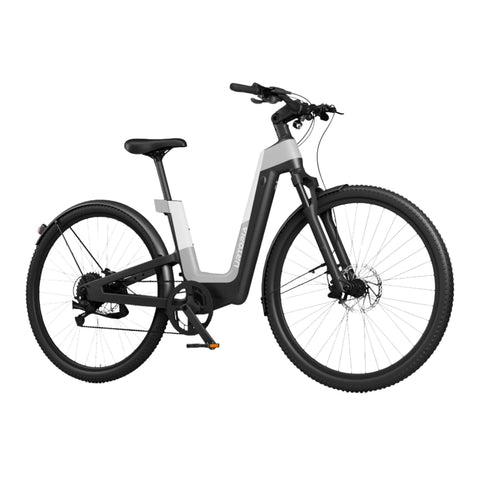

Urtopia Fusion Pro Step-Through E-Bike | UL 2849 Lightweight Carbon Fiber Touring eBike
Urtopia Fusion Pro Step-Through E-Bike | UL 2849 Lightweight Carbon Fiber Touring eBike for Off-Road Use

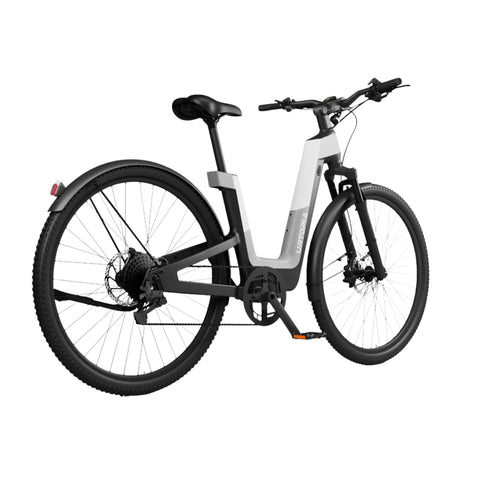

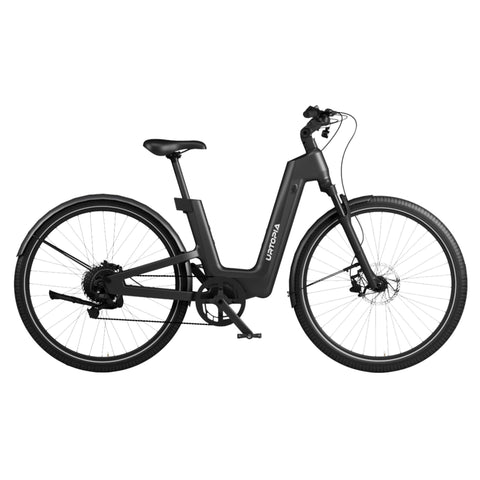

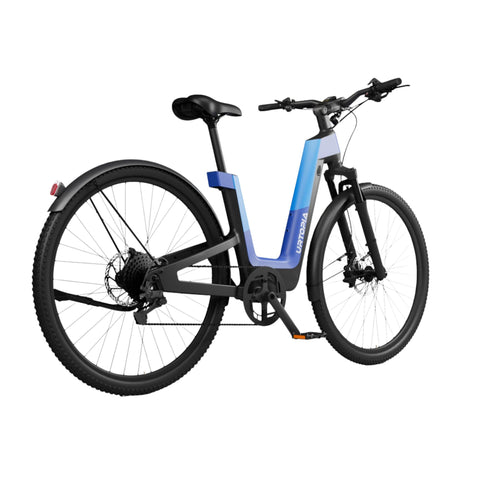

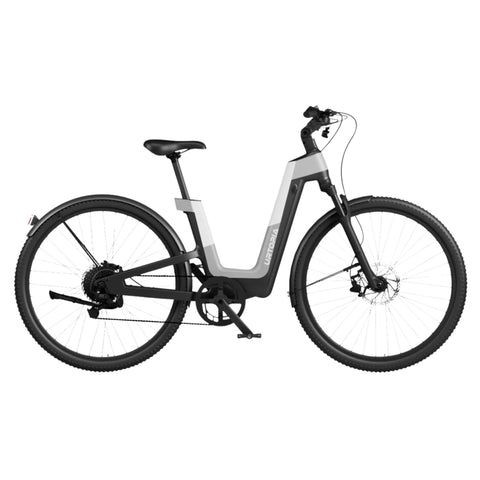

Lightweight Carbon Fiber Strength – Just 50 lbs
At only 50 lbs, Fusion Pro redefines what a rugged touring eBike can be. The full carbon fiber frame delivers exceptional strength, rigidity, and vibration absorption while remaining lighter than many aluminum touring bikes. Loading onto a car rack, lifting for storage, or maneuvering in tight spaces is easier than ever.

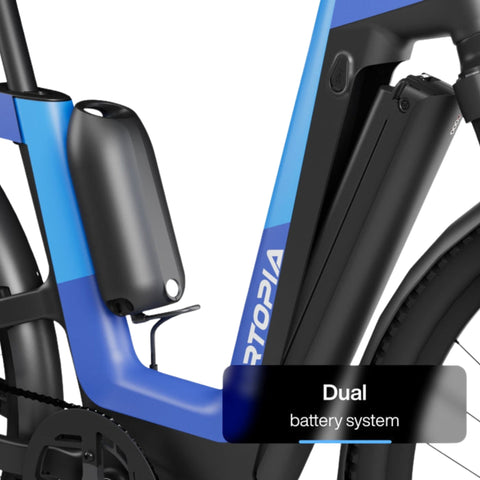

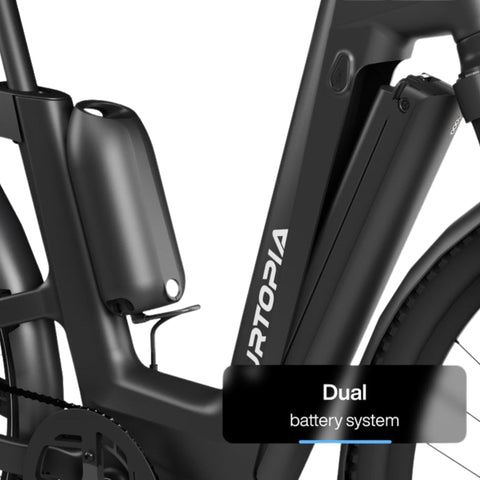

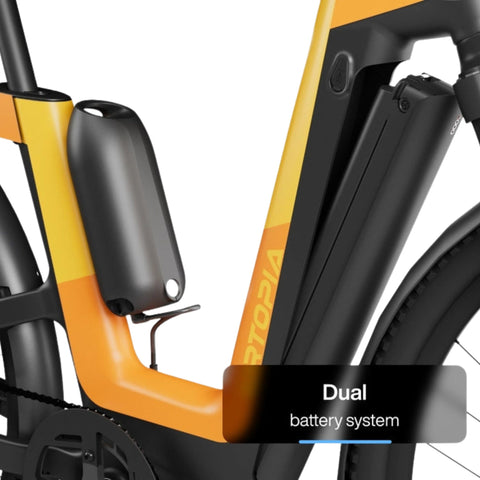

Dual Battery System – Up to 120 Miles of Range
Go further than ever before. With an optional second battery, Fusion Pro delivers up to 120 miles of riding range. Both batteries are removable for convenient charging, making this the ideal electric bike for long-distance riders, weekend adventurers, and daily commuters who demand extended range.

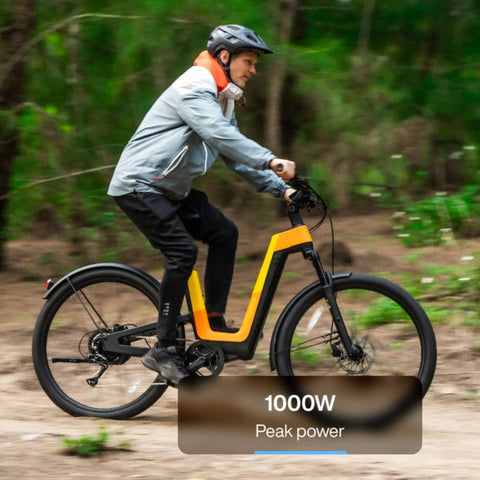

500W Motor with 1000W Peak Power

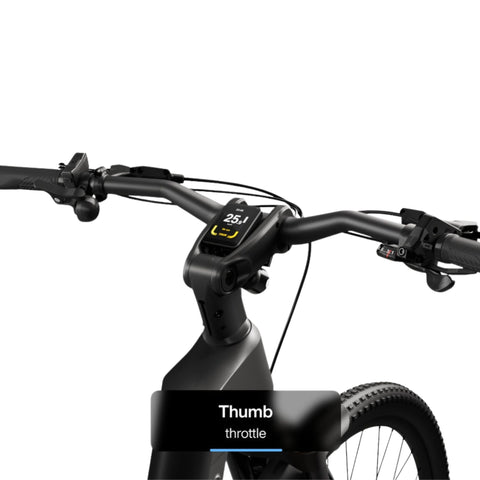

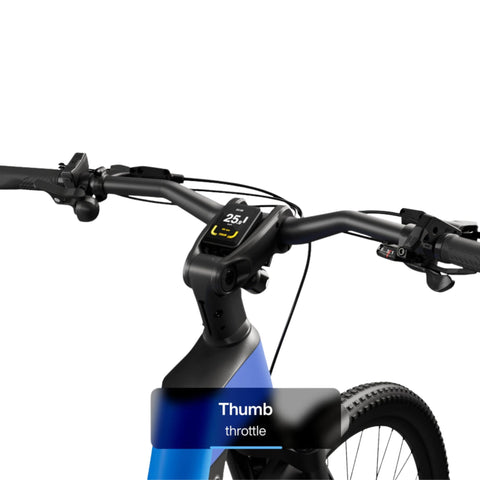

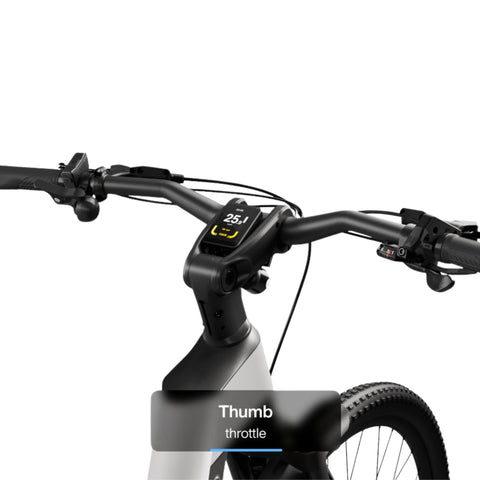

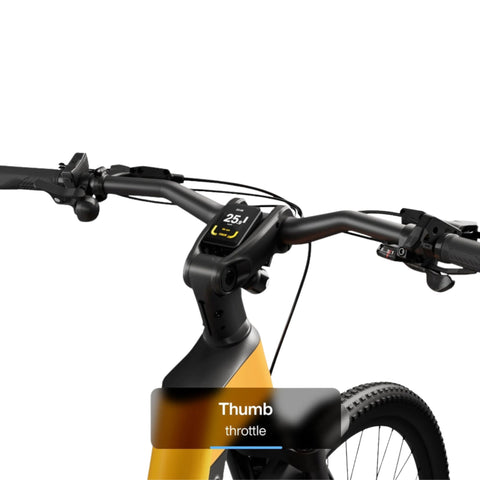

The high-torque 500W motor peaks at 1000W for strong acceleration and confident hill climbing. Paired with an advanced torque sensor, power delivery feels smooth and natural, responding instantly to your pedaling effort. A thumb throttle provides instant boost when needed for stop-and-go traffic or steep inclines.
UL 2849 Certified Carbon Performance
The Urtopia Fusion Pro is UL 2849 certified, meeting rigorous U.S. electrical safety standards for electric bikes. Built with a full carbon fiber frame, it combines advanced engineering with dependable performance for long-distance touring, daily commuting, and all-terrain exploration.
Step-Through Comfort & Adjustable Fit
The low-step carbon frame allows effortless mounting and dismounting, while the 60° adjustable handlebar promotes a relaxed, upright riding position. Designed for all-day comfort whether riding through city streets or open countryside. Smooth All-Terrain Ride

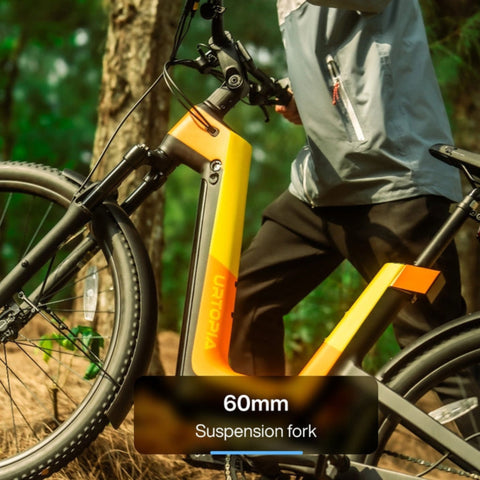

A 60mm front suspension fork absorbs bumps and uneven surfaces, while 29” x 2.05” puncture-resistant tires deliver excellent traction and stability. Confidently ride across pavement, gravel, or light trails with enhanced comfort and control.
Clear LCD Display & Integrated Safety
The integrated LCD display provides real-time ride data including speed, assist level, battery status, and range. TEKTRO hydraulic disc brakes deliver reliable stopping power, and integrated safety cut-off sensors automatically reduce motor output during braking for added protection.
Built to Carry More
With a total payload capacity of up to 330 lbs, Fusion Pro is ready for cargo, commuting essentials, groceries, or touring gear. It is built to handle more so you can explore without limits.
- Lightweight 50 lb Carbon Fiber Electric Bike: Full carbon fiber frame delivers exceptional strength and durability while keeping weight low for easier lifting, transport, and everyday maneuverability.
- Dual Battery Long Range – Up to 120 Miles: Optional second battery extends riding range for long-distance touring, commuting, and weekend exploration with removable, easy-to-charge power systems.
- 500W Motor with 1000W Peak Power & Torque Sensor: High-torque motor provides strong acceleration and confident hill climbing, while the torque sensor ensures smooth, natural pedal assist that responds to your effort.
- 330 lb Payload Capacity – Built for Cargo & Touring: Designed to carry up to 330 lbs total weight, making it ideal for hauling groceries, gear, commuting essentials, or touring equipment with stability and confidence.
- 29” All-Terrain Tires & Hydraulic Disc Brakes: Large puncture-resistant tires, 60mm suspension fork, and TEKTRO hydraulic brakes provide smooth riding, enhanced traction, and reliable stopping power on varied terrain.
- (1) Urtopia Fusion Pro E-Bike
- (1) Battery
- (1) Kickstand
- (1) Set of Fenders
- (1) Tail Light
- Recommended Rider Height: 5’3’’ - 6’3’’
- A. Adjustable Seat Range: 120 mm
- B. Handlebar Grips Height: 1142-1212 mm
- C. Seat Tube Length: 455 mm
- D. Wheelbase: 1178 mm
- E. Overall Length: 1917 mm
- F. Wheel Diameter: 741 mm
- G. Top Tube Length (effective): 600 mm
- H. Head Tube Length: 135 mm
- I. Headset Height: 90-120 mm
- J. Standover Height: 470 mm
General
- Model: Carbon Fusion Pro Long Range eBike
- Net Weight: 48 lbs w/o acc.
- Material: Carbon fiber frame
- Range: Up to 75 miles (Up to 120 miles with dual battery)
- Top Speed: 20 mph by default, 25 mph upon unlock
- Total Weight Limit: 330 lbs
- Rider Height: 5’3’’ - 6’3’’
- Brakes: TEKTRO hydraulic disc brakes with power cut-off sensor
- Wheels: Kenda 29" × 2.05", puncture-proof tire
- Water Resistance: IP65
System
- Class: Class 2 by default (Class 3 upon unlock)
- Motor: 500W rear hub (1000W peak), 60Nm torque
- Throttle: Yes (up to 20 mph)
- Battery: 529.2Wh removable battery, certified to UL-2271
- Pedal Assist: 4 levels
- Charger: 3.5H fast charger
- Sensors: Torque sensor
- Front Lights: External front light, 40 Lux
- Rear Lights: StVZO rear light (Not ARES lights)
- Display: LCD color display
Drivetrain
- Chainrings: 44T
- Crankset: Aluminum alloy, 170mm
- Cassette: 11-40T, 8 Speed
- Chain: YBN S8e, Silver
- Rear Derailleur: Shimano ACERA 8-Speed
- Shift Lever: 8 Speed Trigger
- Pedals: 9/16" Alloy Platform
Cockpit
- Handlebar: Aluminum, extender 0–60° adjustable
- Fork: ZOOM 188NS AMS 700C suspension fork, 60mm travel
- Grips: Durable ergonomic grips, lockable
- Seat Post: Aluminum alloy, φ31.6mm
*The 75-mile range was tested with a 180 lb rider in ECO mode on flat roads without throttle.
 |
